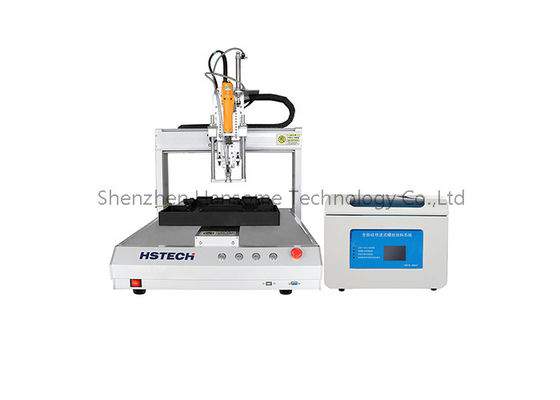

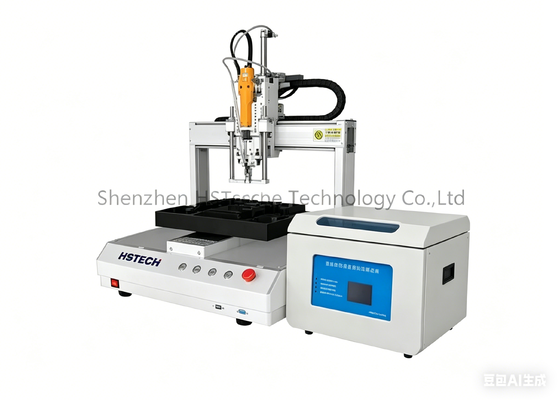

Adjustable Reference Point Single Table Screw Locking Machine With Real Time Monitoring Function

Nome da marca:	HSTECH
Número do modelo:	HS-SL331
MOQ:	1 unidade
preço:	Negotation
Condições de pagamento:	T/T
Capacidade de abastecimento:	50 unidades/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE,ISO

Intervalo de trabalho X/Y/Z:

300*300*100 mm

Alimentação por parafuso:

Alimentação por sucção ou sopro com base em parafusos

Velocidade de movimento do eixo X/Y:

Motor de circuito fechado :1-800 mm/s

Velocidade de movimento do eixo Z:

Motor de circuito fechado: 1-300 mm/s

Carga máxima no eixo X/Y:

Motor de circuito fechado: 5 kg

Carga máxima no eixo Z:

Motor de circuito fechado: 3 kg

Detalhes da embalagem:

De madeira

Habilidade da fonte:

50 unidades/mês

Destacar:

adjustable screw locking machine with monitoring

reference point table screw fastening machine

single table screw machine with real-time monitoring

Descrição do produto

Streamline your assembly line with our compact yet powerful single-table screw feeder solution.

Designed for manufacturers transitioning from manual labor to semi-automation, this machine significantly reduces repetitive strain injuries and human error. Whether you are securing tiny M1.2 screws for a laptop hinge or tightening M6 bolts for a power tool housing, our Single Table Screw Locking Machine delivers consistent torque and depth every time.

Specifications

Model	HS-SL331
X/Y/Z Working Range	300300100mm
Screw Feeder	Suction feeding, or blowing based on screws
X/Y Axis Moving Speed	Closed loop motor: 1-800mm/s
Z Axis Moving Speed	Closed loop motor: 1-300mm/s
X/Y Axis Max Load	Closed loop motor: 5KG
Z Axis Max Load	Closed loop motor: 3KG
Repeat Accuracy	±0.02mm
Operation Method	Auto
Programming	Manual (Teach Pendant)
Control	Board card
Weight	65kg
Dimension (LWH)	746585800mm
Power Supply	220V 50-60Hz 350W

Machine Features

Support computer graphics import function, can import PLT file and G code file

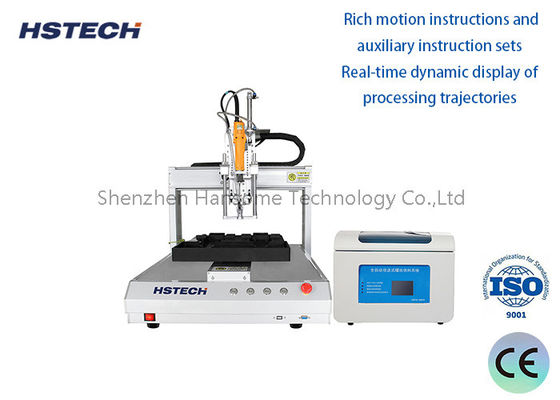

Rich motion instructions and auxiliary instruction sets
Convenient and friendly document teaching and editing functions with advanced editing capabilities including batch modification, array copying, graphic shifting, graphic zooming, and automatic rounding
Common graphics library for customer calls
Graphic display function for intuitive processing file visualization
Real-time dynamic display of processing trajectories
Convenient help system accessible via Shift+F1 key in any interface
Multiple processing methods including cyclic processing, single processing, automatic processing, and single-step processing
Offline operation capability with parameter download via serial port
Storage for hundreds of processing files, each supporting up to 1000 screw bits

Working Principle & Process

Manual Loading: Operator places the product on the single worktable
Program Execution: The machine automatically runs the pre-set screw locking program
Screw Feeding: The feeder sorts and delivers screws to the electric screwdriver tip
Precision Locking: The 3-axis system moves the screwdriver to each screw hole, applying controlled torque
Quality Check: Real-time monitoring verifies each lock is complete and within torque range
Completion & Unloading: Once all screws are locked, the machine resets, and the operator removes the finished part

Application Industries

3C Electronics (Mobile Phones, Tablets, Chargers)
Home Appliances (Toys, Small Kitchen Appliances, Power Tools)
LED & Lighting Products
Automotive Electronic Components
PCB & Circuit Board Assemblies
Plastic & Metal Housing Assembly

Why Customers Choose This Model

Plug & Play: Simple programming via touch screen (No coding experience needed)
Dual Safety Standards: Equipped with light curtains and emergency stops (Compliant with ISO 12100)
Versatile Feeding: Supports Vacuum suction or Magnetic pick-up (Adapt to plastic or metal parts)

Ready to Automate Your Assembly Line?
Don't let manual screwdriving slow you down. Contact us today for a free quote and a video demonstration!
